Mechanical Weighing Scale

Home Mechanical Weighing Scale

Get the Best Mechanical Weighing Scale

Are you looking for a reliable and best mechanical weighing scale for your business? Then surely Alexandra Scale Co. is your ideal destination.  Here we offer various range of mechanical weighing scale that comes to you at a much affordable cost.

Well, the best part regarding our services is that here we first analyse the overall demand and requirement of the clients and then based on that offers them a best and the most suitable mechanical steel yard weighing scale that both suits to their budget as well as meet all of the requirements of the clients.
Since from the time of our inception we are keenly focussing in delivering best in class customer support in related to our products and services that we are offering to all our clients.

Well, in this regard we have a well-experienced team of technical professionals who always work as a team to deliver the world class customer support by solving all their queries related to our products. All these has helped us emerge as one of the leading dial mechanical weighing scale exporter in the country who have clients from all parts of the country.

Well, we offer our weighing scale in retail shops as well as to big stores all at a much affordable cost. For more details regarding all our products you can log on to our official website or get in touch with our customer support team for any sorts of help if you need from our end.

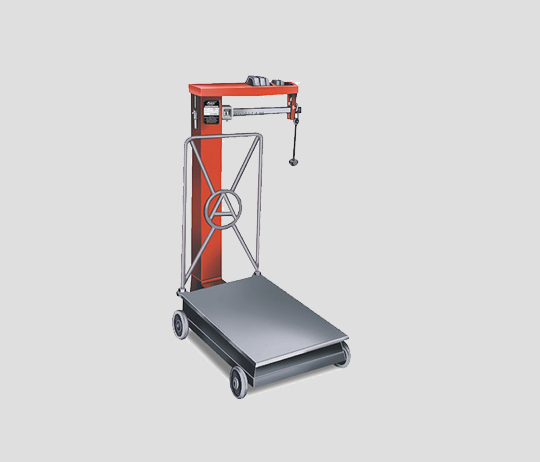

Model - 252 Loose Weight and Conversion Kit

Model - 252 Loose Weight and Conversion Kit

Capacity

Platform Size

Division
500 kg. 600 mm x 600 mm 10 kg X 100 gm
300 kg 635 mm x 406 mm 10 kg X 100 gm
100 kg 410 mm x 330 mm 05 kg X 50 gm

Some Attractive Features

  • The machine is highly sensitive.  Because of the precision workmanship.
  • The machine is light in weight and easily portable.
  • The machine is mounted on four wheels on continues axles.
  • The machine is duco painted to give durable streamlined finish.
  • The box is casted one piece and designed to give maximum strength and stability for the working at two levers inside.
  • The machine is provided with four locks on the lever to avoid re-adjustment of levers after carrying it from one place to another.
  • The machine is fitted with easily read steelyard graduated in metric standard of weight.
  • The machine pillar is made of steel and is impervious to insects unlike wooden pillar
  • To make the machine easily par/able the steelyard can be locked if desired.
  • The balance can be adjusted by the operation of the screw fitted in the end of the steelyard m accordance with the weights and measures Act.
  • The working parts of the machine are hardened up to 62 RC for maximum durability and accurate working.

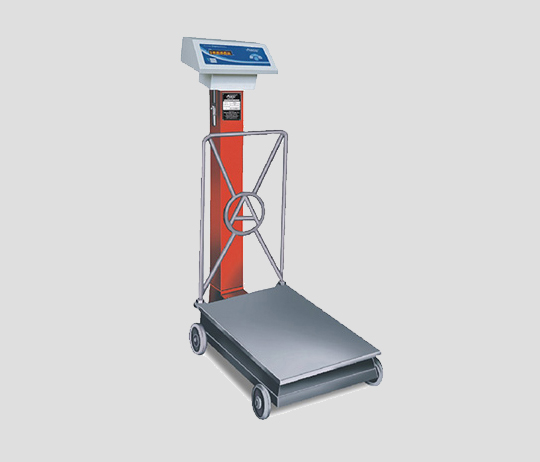

Conversion Kit

Conversion Kit

Model

Capacity
ASP-252 300 kg.
ASP-252 500 kg.

Features:

  • Piece Counting
  • Set Point.
  • Stand by off
  • Memory  +
  • Memory Recall - MR

Optional Facilities (at extra charges)

  • Battery Backup device of 6v.
  • P.C.O. Type display with 5 MTR. Cord.
  • RS 232C interface

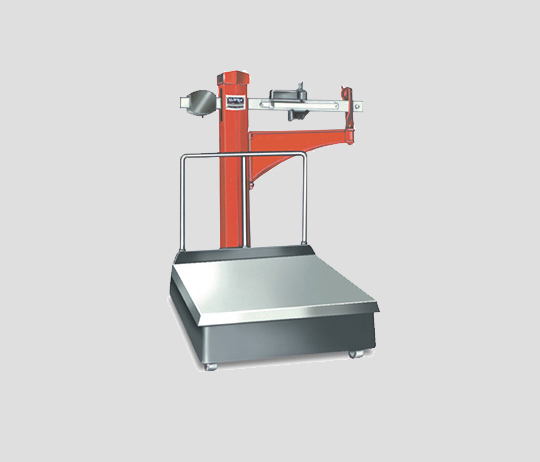

Model - 192 Steelyard type and Conversion Kit

Model - 192 Steelyard type and Conversion Kit

Design and Constructional Features

"ASCO" Steelyard type heavy duty Portable Plateform Machine Model No 192 has special design for exceptional strength of bottom work to bear unexpected shocks and worst handling. These machines are tested rigorously such a way that one can safely depend on its accuracy. durability and quality of components. The platform levers stool pillar. bracket wheels, frame work are made from graded casting. The platform is bolted with solid steel backrail to protect pillar and steelyard. Kinfeedges and bearings are made of special alloy steels for better machining and proper heat treating. The machine fully confirms IS-1435-1960 and comply with the rules and regulations laid down by W & M dept.


Indication

Steelyard is gratuated up 10 the full capacity of the machine very preciesly, provided with knotch protection bar and fitted at suitable angle with clearly marked index plate made of brass for long life.


Quality And Service

"ASCO" machines are manufactured with the help of high standard quality materials and under strict supervision to ensure accuracy and long life even under hazardous working condition We provide after sales service to customers by our factory trained mechanics free of charge for one year. We also entertain service. maintenance and stamping contract for weighing machines at reasonable rates. Our technical representative will always be available to answer your weighing problems.


Capacity

Major Bar

Minor Bar

Platform size

Accuracy
300 Kg 300 Kg x 10 Kg 10 Kg x 100 gm 610 mm x 610 mm 100 gm
500 Kg 500 Kg x 20 Kg 20 Kg x 100 gm 762 mm x 762 mm 100 gm
1000 Kg 1000 Kg x 50 Kg 50 Kg x 200 gm 914 mm x 914 mm 200 gm
2000 Kg 2000 Kg x 50 Kg 50 Kg x 200 gm 1020 mm x 1020 mm 200 gm
3000 Kg 300 Kg x 100Kg 100 kg x 500gm 1020 mm x 1020 mm 500 gm

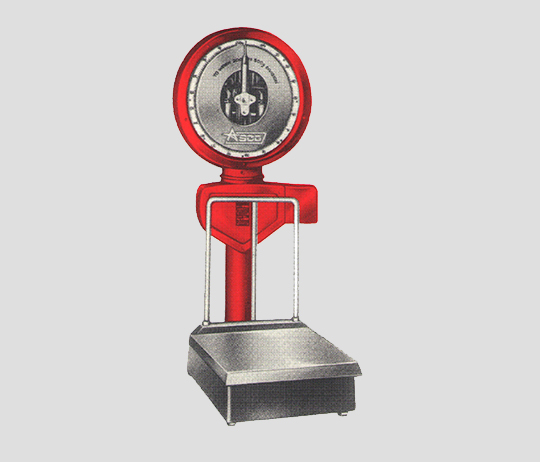

DIAL SCALE MODEL- 121

DIAL SCALE MODEL- 121

TECHNICAL FEATURES

  • "ASCO" Self Indicating (Fully automatic) Dial Scale Model No. 121 is a popular series for spontaneous automatic weight indication and used everywhere in industry, commerce research institution and trade.
  • The scale confirms to lSI Specification No.IS-1435 and W & MAds and Rules.
  • Shadow-less line to line indication of the pointer on black and white equally spaced marking of dial chart.
  • Double Pendulum  mechanism  housed  in dust and moisture proof  dial head  ensure life-long & fatigue  free indication .
  • Locking device enables quick locking when not in use.
  • Dashpot fitted indside prevents excessive ocillation  of the needle.
  • The levers, stool, frame and plateform plate are made of graded grey iron castings.
  • Knives and bearings and made from high carbon steel, forged to a low carbon mild steel backing accurately machined and heat treated.
  • The frame is mounted on four cast iron wheels.
  • Tare bar can be provided as an optional accessories.
  • Steel suspensions ensure free movement of the levers preventing damped stresses & shocks.
  • Backrail is fitted to protect  dial head.
  • We provide after sales service free of charge by our factory trained mechanics for a period of one year.
  • The scales are one Years Against Mfg. Defects which you will never need.
  • One year  guarantee against Mfg. defects.

Total Capacity

Chart graduation

Platform Size
100 kg 100 kg. x 200 gm. 600 x 600 (MM) 24" x 24"
200 kg. 200 kg . x 500 gm. 600 x 600 (MM) 24" x 24"
300 kg. 300 kg. x 500 gm. 600 x 600 (MM) 24" x 24"
500 kg. 500 kg. x  1 kg. 750 x  750 (MM) 30" x  30"
1000 kg. 1000 kg. x 2 kg. 914 x 914(MM) 36" x 36"
2000 kg 2000 kg x5 kg 1 000 x 1000 (MM) 40" x  40"
3000 kg . 3000 kg x  5 kg. 1 200 x  1200 (MM) 48" x 48"
